TPP-080CQEA 超薄高清/Intel x86平臺/工業一體機/工業平板/工業手持平板/電容觸摸平板
遠程管理
狀態監控
遠程運維
安全控制
聯系我們
掃碼即可添加微信，售前客服為您提供咨詢服務
產品描述

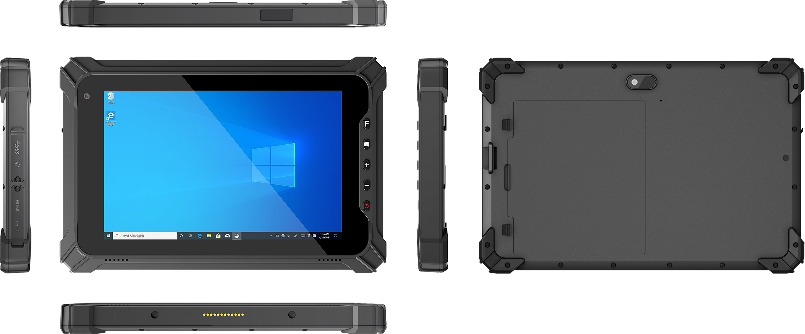

阿普奇TPP-080CQEA是一款工業級手持平板電腦，配備8英寸TFT-LCD顯示屏，分辨率1920×1200，亮度550 cd/m2，支持5點投射電容觸摸，覆蓋鋼化玻璃，硬度≥7H。搭載Intel? Celeron? N5100處理器，8GB DDR4內存，128GB eMMC存儲，支持TF卡擴展。接口包括USB Type-A、Type-C（支持充電）、HDMI Mini、SIM卡槽等。具備前置5MP攝像頭、雙防水揚聲器、G-sensor、Wi-Fi 5雙頻、藍牙5.0、4G LTE、GPS/Glonass，可選NFC和QR碼掃描。采用可拆卸5000mAh電池，運行Windows 10系統，尺寸236.7×155.7×20mm，重量910g，IP65防護，工作溫度-20~60°C，抗振動與跌落，適用于手持及車載場景。
|
Model |
TPP-080CQEA |
|
|
LCD |
Display Size | 8" |
|
? |
Display Type | TFT-LCD |
|
? |
Max.Resolution | 1920 x 1200 |
|
? |
Luminance | 550 cd/m2 |
|
? |
Aspect Ratio | 16:10 |
|
Touchscreen |
Touch Type | 5-point PCAP with tempered-glass cover |
|
? |
Material | G+G |
|
? |
Input | Finger/Capacitive Touch Pen |
|
? |
Hardness | ≥7H |
|
?Processor System |
CPU | Intel? Celeron? Jasper Lake N5100 |
|
? |
TDP | 6W |
|
? |
Chipset | SOC |
|
Memory |
Capacity | 8G, DDR4 |
|
Storage |
Capacity | 128GB, eMMC |
|
? |
TF Card | 1 * TF Card slot, Max. 512GB |
|
I/O |
USB | 1 * USB 5Gbps (Type-A)
1 * USB 5Gbps (Type-C, Charging supported) |
|
? |
Display | 1 * HDMI (Mini): max resolution up to 4096x2304@60Hz |
|
? |
Audio | 1 * 3.5mm Jack (MIC+Line-out) |
|
? |
SIM Card | 1 * SIM Card slot |
|
? |
POGO PIN | 1 * 12Pin Pogo Pin |
|
? |
Power | 1 * Type-C Power Input Connector |
|
Function |
Camera | 1 * Front 5.0 MP 1 * Rear 8.0 MP (Flash LED) |
|
? |
Speaker | 2 * Waterproof loudspeaker?(8Ω/1W ) |
|
? |
G-sensor | Support |
|
? |
Wi-Fi | 2.4GHz + 5.8GHz dual-band Wi-Fi 5 |
|
? |
Bluetooth | BT5.0 (BLE) |
|
? |
Mobile Network | 4G LTE |
|
? |
GPS | GPS + Glonass |
|
? |
NFC | NXP NFC 13.56MHz (Opt.) |
|
? |
QR Code | Honeywell N3680 (Opt.) |
|
Power Supply |
Connector | 1 * Type-C |
|
? |
Battery | 7.6V/5000mAh (Detachable) |
|
OS Support |
Windows | Windows 10 |
|
Mechanical |
Usage Mode | Handheld, Vehicle mount (Opt.) |
|
? |
Dimensions | 236.7(L) * 155.7(W) * 20(D)mm |
|
? |
Weight | 910g (Net.) |
|
Environment |
Heat Dissipation System | Passive heat dissipation |
| ? | Operating Temperature | -20~60℃ |
| ? | Storage Temperature | -30~70℃ |
| ? | Vibration During | 1.08Grms@5~500Hz, random, 1hr/axis |
| ? | Functional Drop | 1.22 m free-fall onto 20 mm plywood over concrete, 26 impacts |
| ? | IP Rating | IP65 |
-
