產品描述

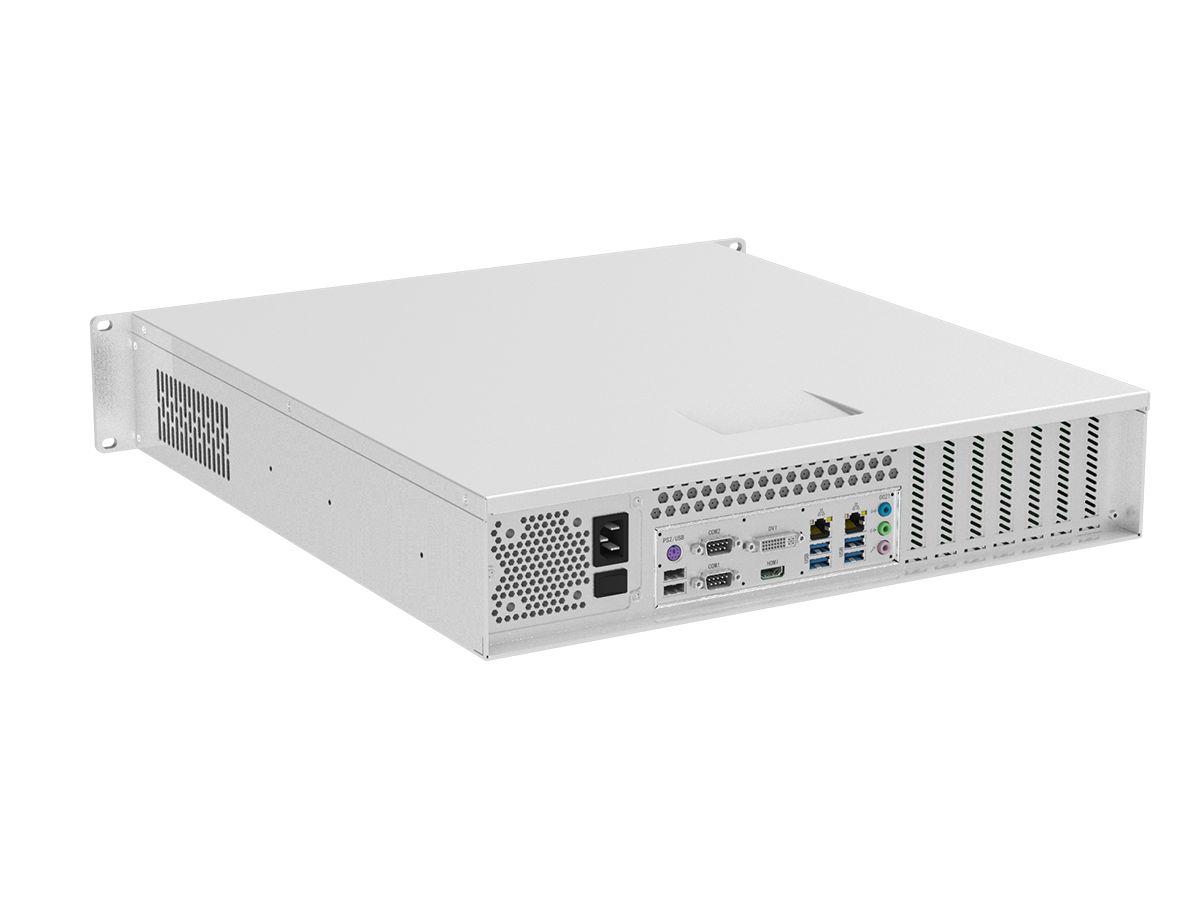

阿普奇2U上架式工控機IPC200-H81，這款卓越的工業計算機專為工業自動化和現場應用打造。它具備一系列出色的產品特點，確保在各種惡劣環境中穩定運行，為工業生產提供強大支持。首先，IPC200-H81支持Intel? 4/5th Generation Core/Pentium/Celeron Desktop CPU，為用戶提供了強大的計算性能，滿足各種工業需求。其次，設備采用全套模具成型，配備標準19英寸2U上架式機箱，易于安裝且穩固可靠。此外，IPC200-H81支持標準ATX主板和2U電源，提供了充足的擴展空間，最多支持7個插槽的半高板卡擴展，滿足多種行業應用需求。值得一提的是，該工控機還采用了人性化設計。機箱前置的系統風扇免工具維護，降低了維護成本和時間。同時，設備最多可容納4個3.5英寸抗震抗沖擊硬盤位，為數據存儲提供了穩定的環境。而前面板USB接口、開關機按鈕以及電源及存儲狀態顯示功能，使得系統維護更為便捷。
綜上所述，阿普奇IPC200-H81 2U上架式工控機憑借其穩定性、可靠性和強大的擴展能力，成為了工業自動化領域的理想選擇。無論是在生產線控制、數據監控還是在復雜的工業數據分析中，它都能為您提供卓越的支持。
|
Model |
IPC200-H81 |
|
|
Processor System |
CPU | Support Intel? 4/5th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 95W | |
| Socket | LGA1150 | |
| Chipset | H81 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 2 * Non-ECC U-DIMM Slot, Dual Channel DDR3 up to 1600MHz |
| Capacity | 16GB, Single Max. 8GB | |
|
Graphics |
Controller | Intel? UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45) |
| 1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45) | ||
|
Storage |
SATA | 1 * SATA3.0 7P Connector |
| 2 * SATA2.0 7P Connector | ||
| M.2 | 1 * M.2 Key-M (SATA SSD, SATA 3.0, 2242/2260/2280) | |
|
Expansion Slots |
PCIe | 1 * PCIe x16 slot (Gen 3, x16 signal) |
| 1 * PCIe x4 slot (Gen 2, x2 signal, Default, co-lay with Mini PCIe) | ||
| 1 * PCIe x1 slot (Gen 2, x1 signal) | ||
| PCI | 4 * PCI slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0 (Opt., co-lay with PCIe x4 slot), with 1 * SIM Card) | |
|

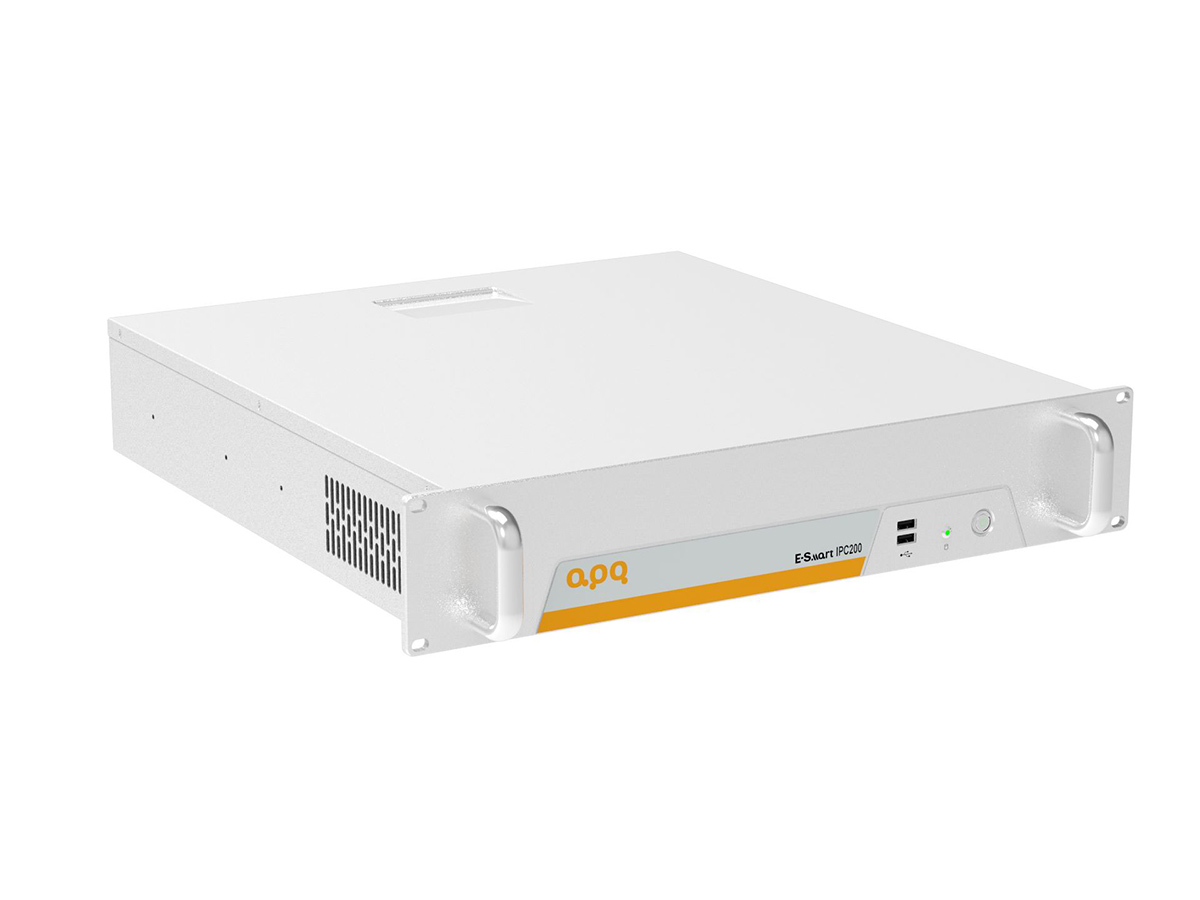

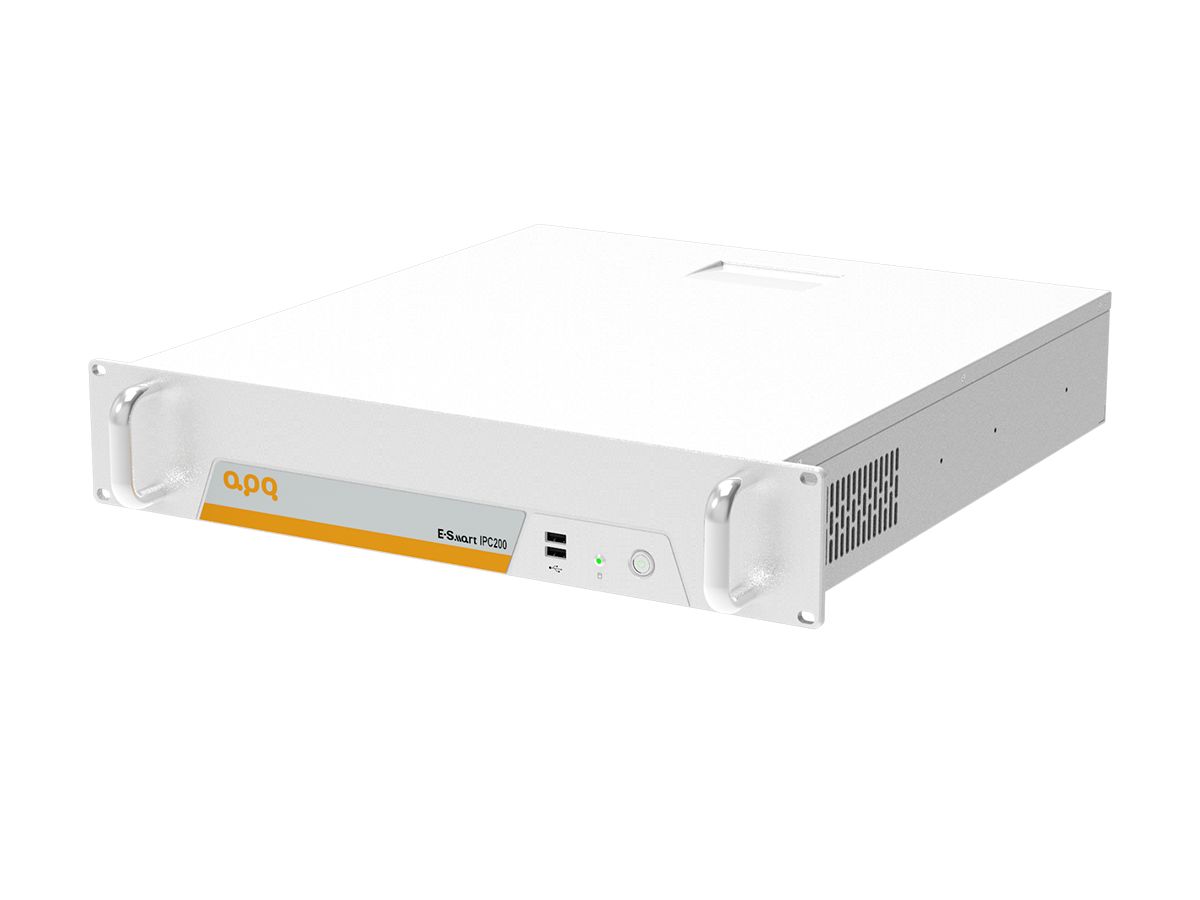

Front I/O |
Ethernet | 2 * RJ45 |
| USB | 2 * USB 5Gbps?(Type-A) | |
| 4 * USB2.0 (Type-A) | ||
| PS/2 | 1 * PS/2 (Keyboard & Mouse) | |
| Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz | |
| 1 * HDMI1.4: max resolution up to 4096*2160 @ 24Hz | ||
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
|

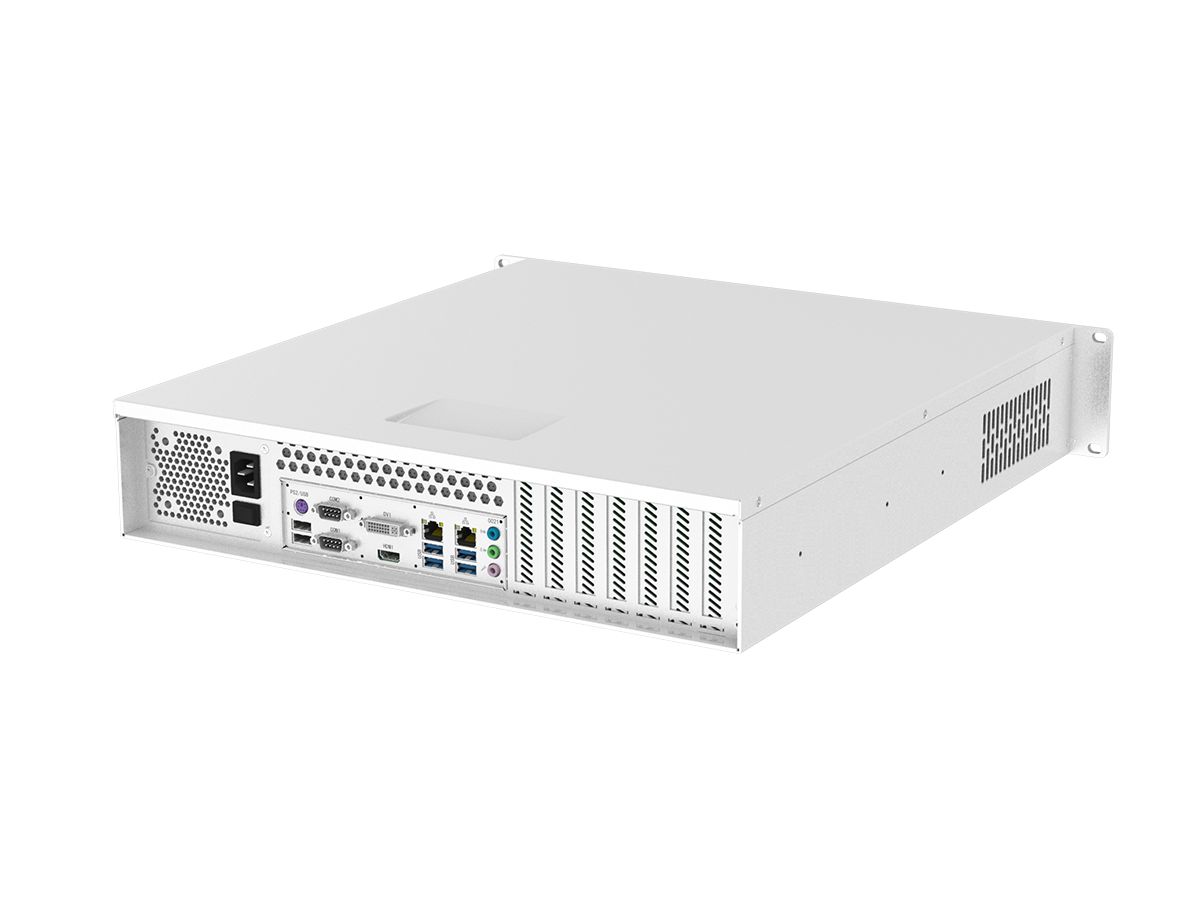

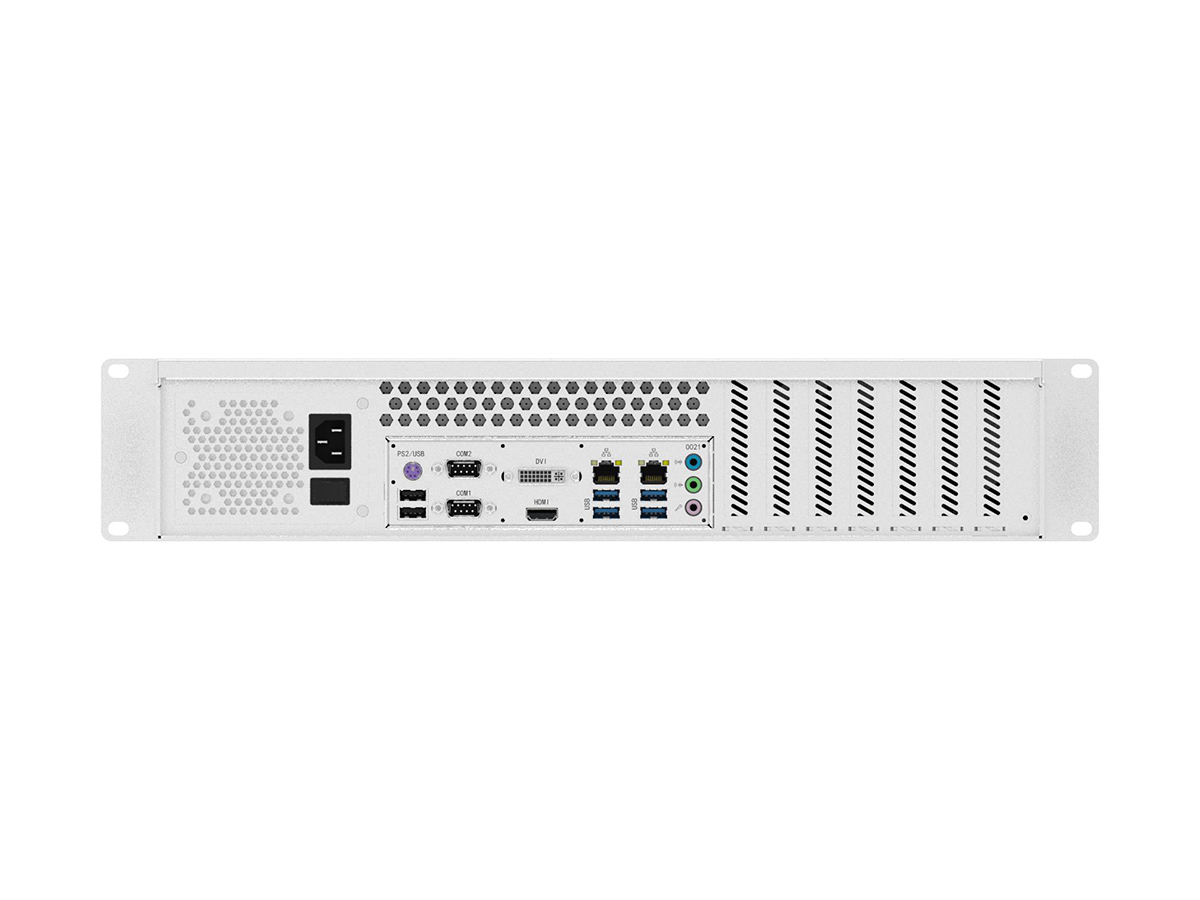

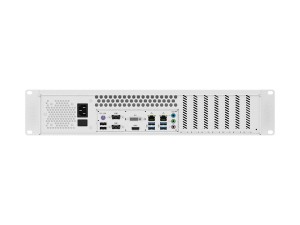

Rear I/O |
USB | 2 * USB2.0 (Type-A) |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED | |
| 1 * Hard drive status LED | ||
|
Internal I/O |
USB | 1 * USB2.0 (Vertical TYEP-A) |
| COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer) | |
| 1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | ||
| Audio | 1 * Front Audio (Line-Out + MIC, Header) | |
| 1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) | ||
| GPIO | 1 * 16 bits DIO (8DI and 8DO, wafer) | |
| SATA | 3 * SATA 7P Connector | |
| LPT | 1 * LPT (Header) | |
| FAN | 2 * SYS FAN (Header) | |
| 1 * CPU FAN (Header) | ||
|
Power Supply |
Type | 2U FLEX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the 2U power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 7/10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|

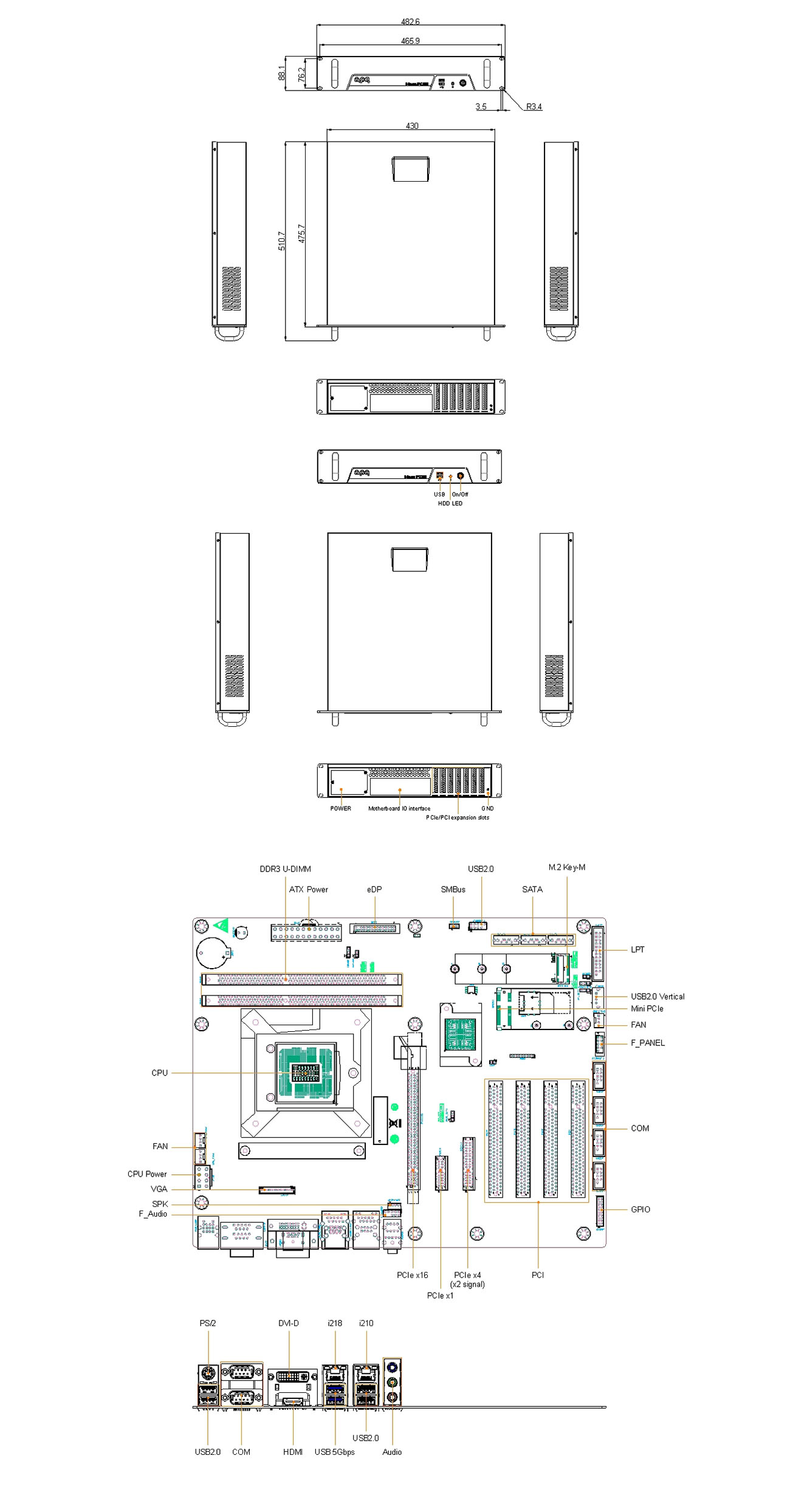

Mechanical |
Enclosure Material | SGCC+AL6061 |
| Dimensions | 482.6mm(L) * 475.7mm(W) * 88.1mm(H) | |
| Mounting | Rack-mounted/Desktop | |
|
?Environment |
Operating Temperature | 0 ~ 50℃ |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
