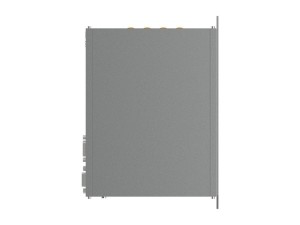

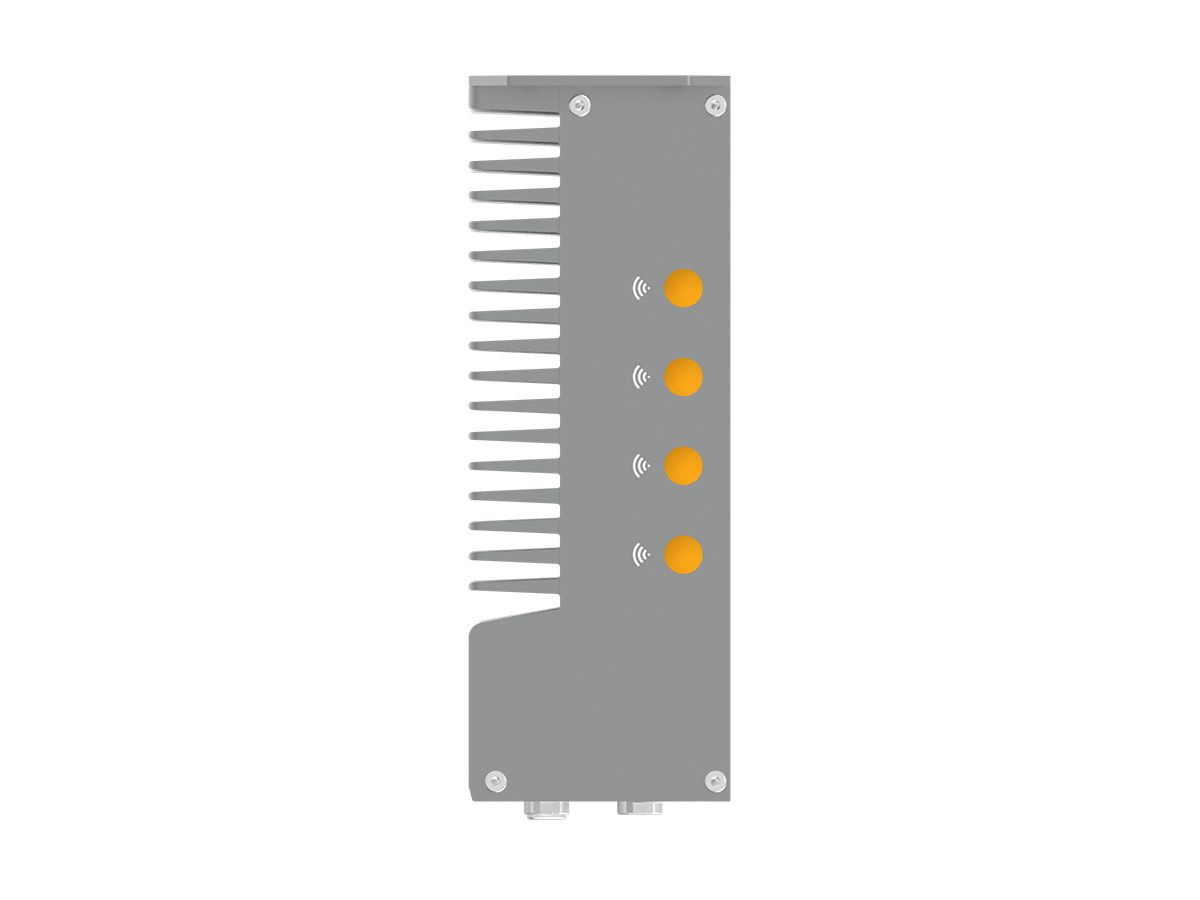

AK5系列Alder Lake-N平臺 具身機器人控制器/嵌入式工控機/行業控制器/邊緣計算控制器
遠程管理
狀態監控
遠程運維
安全控制
聯系我們
掃碼即可添加微信，售前客服為您提供咨詢服務
|
Model |
AK5xxx |
AK5xxx-1A/1B |
AK5xxx-2A |
AK5xxx-3A |
|
|
CPU |
CPU | Intel??Alder Lake-N Series Processor | |||
| TDP | 12/15W | ||||
| Chipset | SOC | ||||
|
BIOS |
BIOS | AMI UEFI BIOS | |||
|
Memory |
Socket | 1 * DDR4 SO-DIMM Slot, up to 3200MHz | |||
| Max Capacity | 16GB | ||||
|
Graphics |
Controller | Intel??UHD Graphics | |||
|
Ethernet |
Controller | 2 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps) | 2 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel??i350 GbE LAN Chip (10/100/1000 Mbps) |
2 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps) | 2 * Intel??i210-AT GbE LAN Chip (10/100/1000 Mbps) |
|
Storage |
M.2 | 1 * M.2 Key-M (SATA3.0, 2280) | |||
|
Expansion Slots |
Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot) | |||
| PCIe/PCI | N/A | N/A | 1 * PCIe x4 | 1?* PCI | |
|

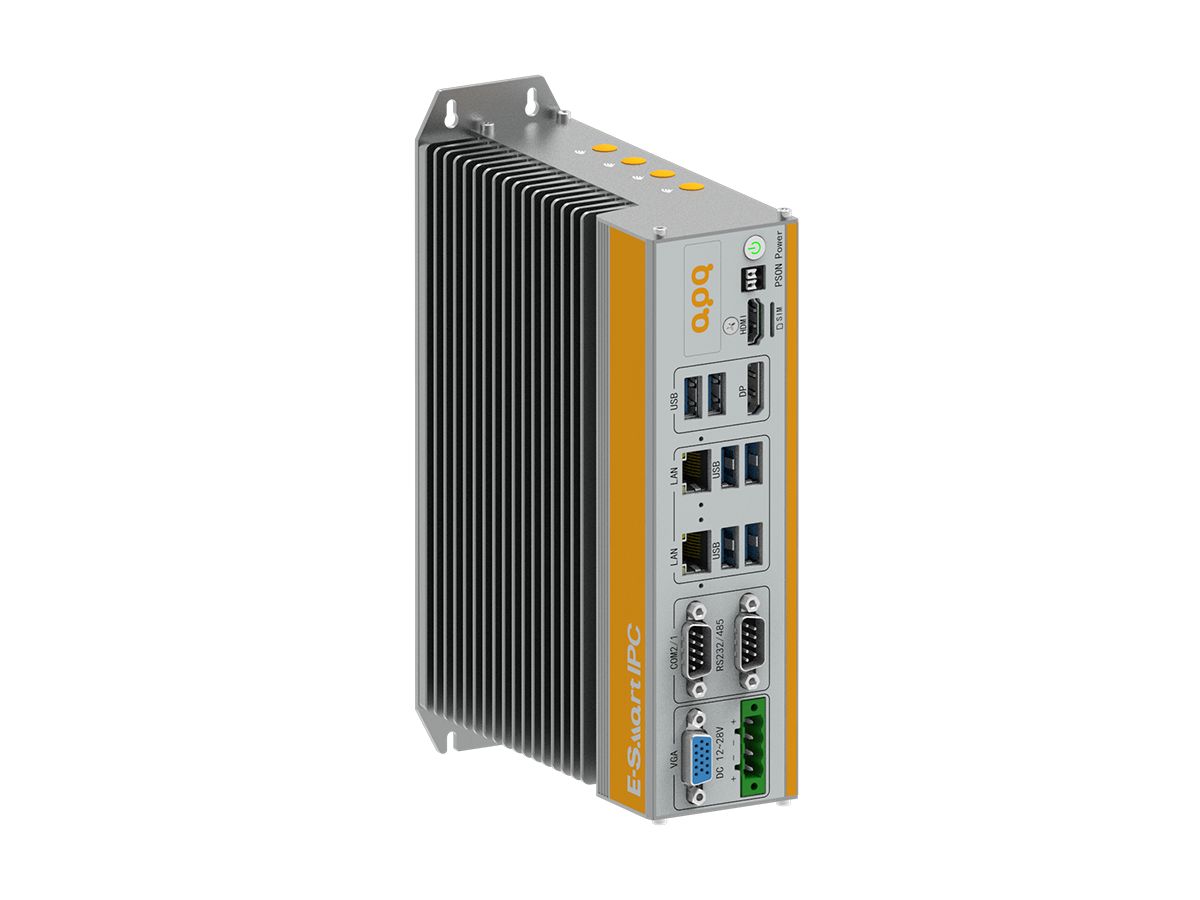

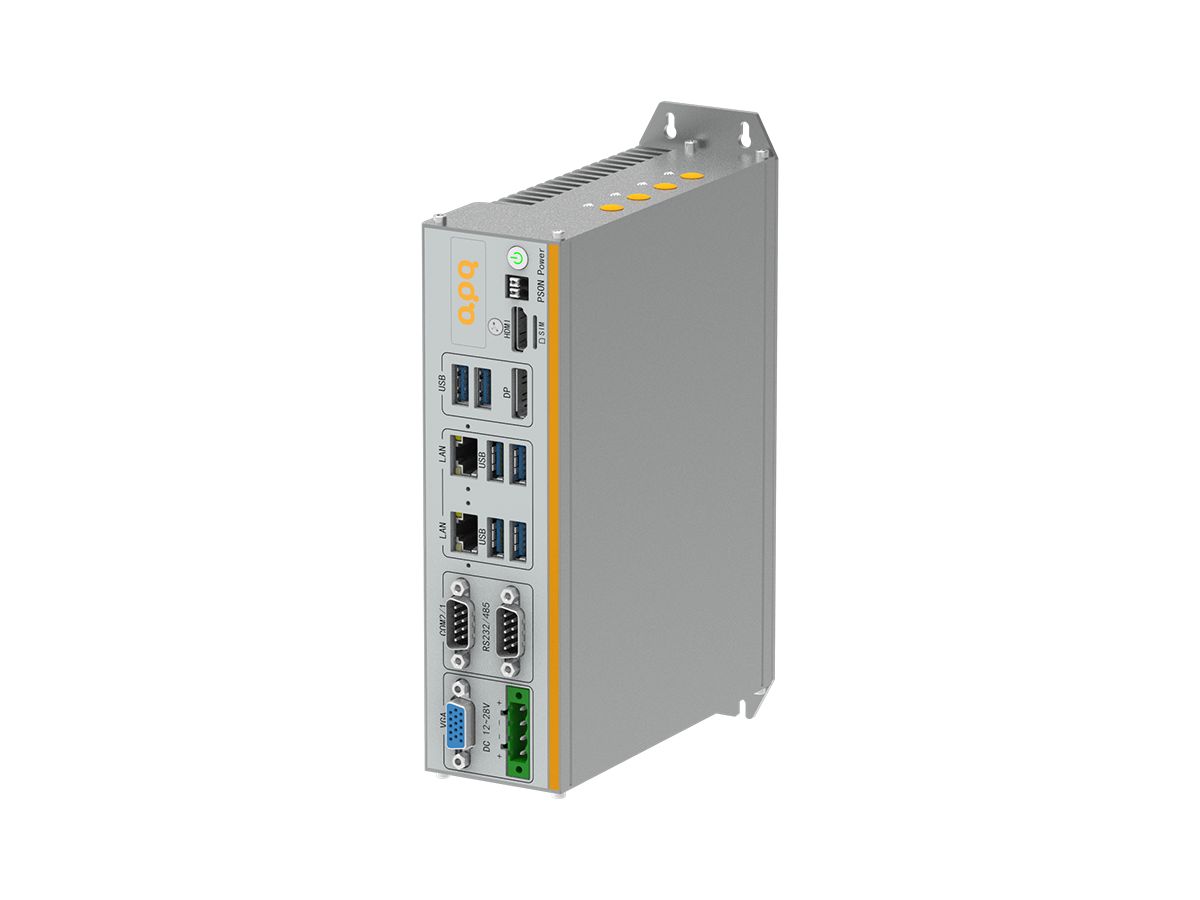

Front I/O |
USB | 4 * USB3.0 (Type-A)
2?* USB2.0 (Type-A) |
|||
| Serial | 2 * RS232/485 (COM1/2, DB9/M, Full lanes, BIOS switch) | ||||
| Display | 1 * HDMI: max resolution up to 4096*2304 @ 24Hz 1 * DP: max resolution up to 4096*2160 @ 60Hz 1 * VGA: max resolution up to 1920*1200 @ 60Hz |
||||
| LAN/POE | 2 * RJ45 | 2 * RJ45 AK5xxx-1A: 2 * RJ45, Intel??i350-AM2, optional POE module, 802.3at/af, total 60W AK5xxx-1B: 4 * RJ45, Intel??i350-AM4, optional POE module, 802.3at/af, total 60W |
2 * RJ45 | 2 * RJ45 | |
| Light Source | N/A | 4 * Light Source Output (24V, Max. 1A per channel, PWM control) | N/A | N/A | |
| GPIO | N/A | 1 * 16bits DIO (8xDI,?optical isolation; 8xDO, optical isolation) | N/A | N/A | |
| Power | 1 * DC Power Input | 1 * DC Power Input | 1 * DC Power Input | 1 * DC Power Input | |
| SIM | 1 * Nano SIM Card slot (Mini PCIe module provide functional support) | ||||
| Button | 1 * Power Button + Power LED 1 * PS_ON Connector |
||||
|

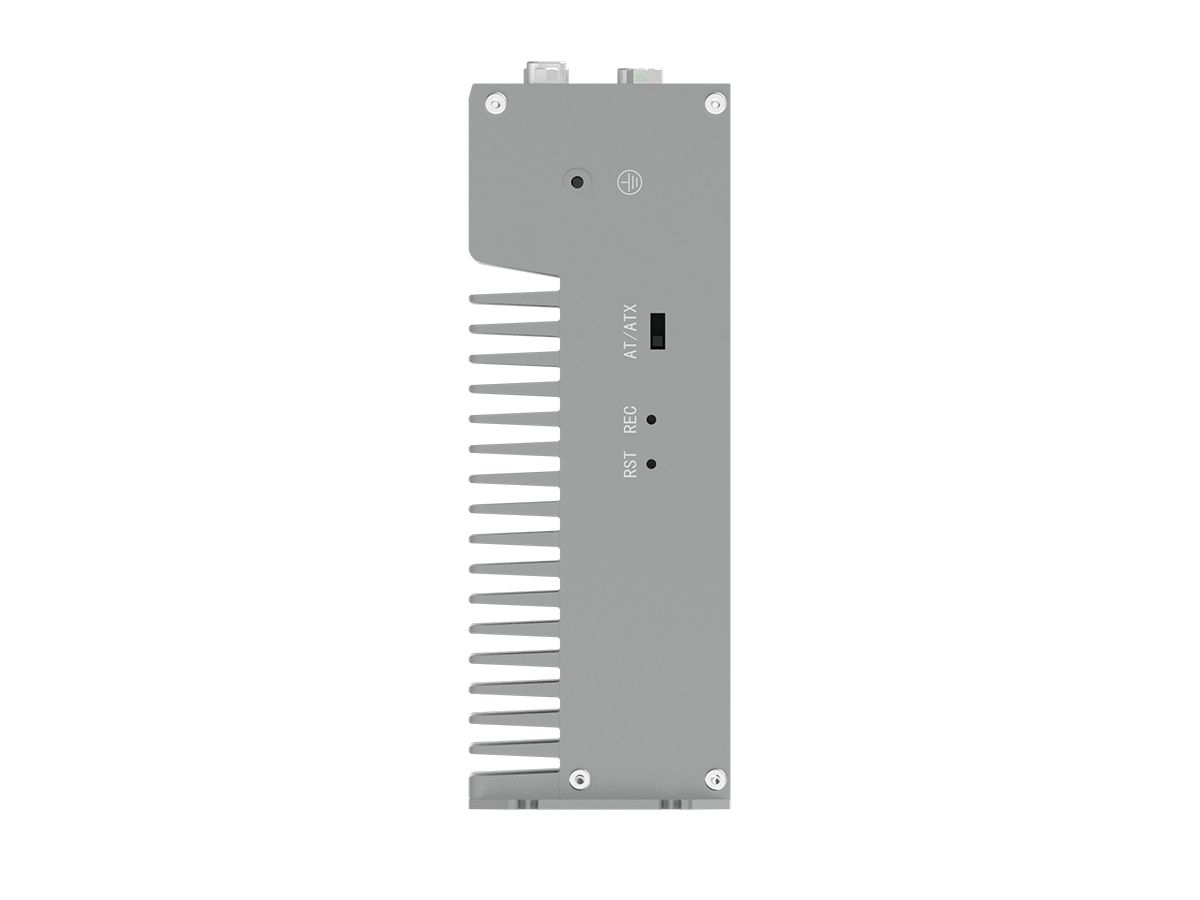

Bottom I/O |
Switch | 1 * AT/ATX Mode Switch (Enable/Disable automatically power on) | |||
| Button | 1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS) 1 * OS Rec (system recovery) |
||||
| PCIe/PCI | N/A | N/A | 1 * PCIe x4 | 1?* PCI | |
|
Power Supply |
Type | DC | |||
| Power Input Voltage | 12 ~ 28VDC Note：When using the light source, 24V input must be used. |
||||
| Connector | 1 * 4Pin Power Input Connector (P= 5.08mm) | ||||
| RTC Battery | CR2032 Coin Cell | ||||
|
OS Support |
Windows | Windows 10/11 | |||
| Linux | Linux | ||||
|
Watchdog |
Output | System Reset | |||
| Interval | Programmable via Software from 1 to 255 sec | ||||
|

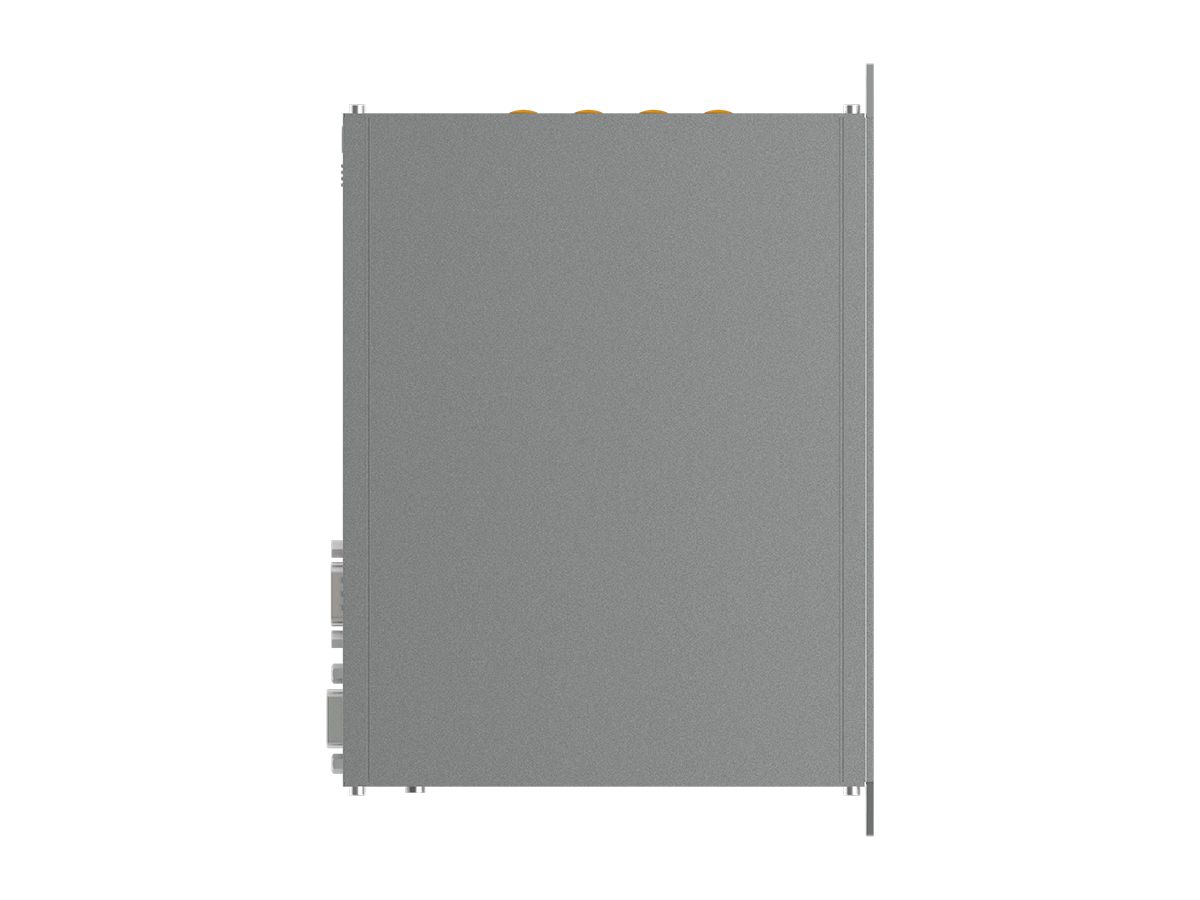

Mechanical |
Enclosure Material | Radiator/Box: Aluminum alloy, Top/Bottom Cover: SGCC | |||
| Dimensions | 53mm(L) * 145mm(W) * 186.4mm(H) | 72.9mm(L) * 145mm(W) * 186.4mm(H) | 72.9mm(L) * 145mm(W) * 186.4mm(H) | 72.9mm(L) * 145mm(W) * 186.4mm(H) | |

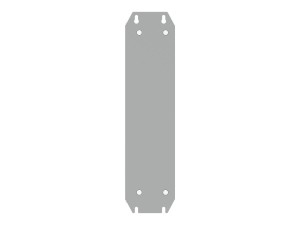

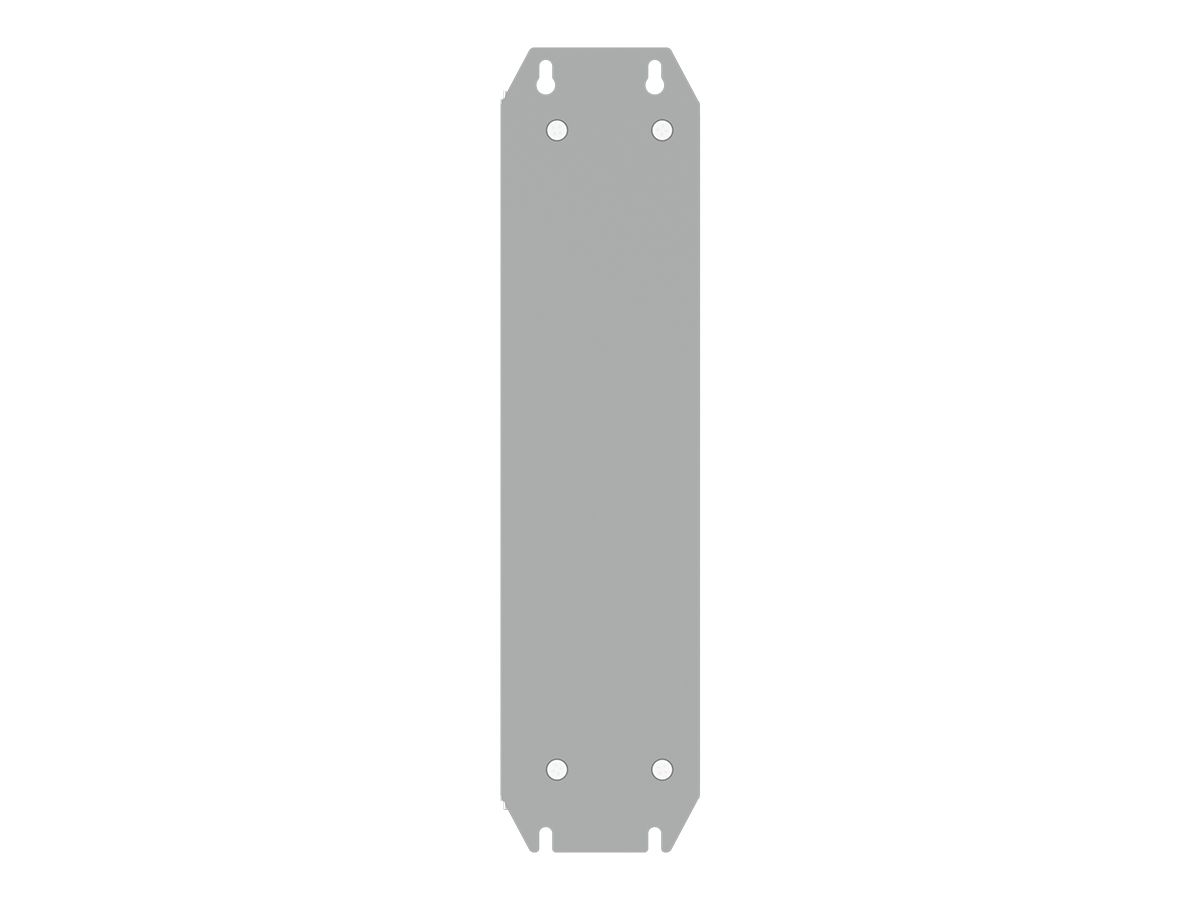

| Mounting | Wall mounted, DIN, Desktop | ||||
|
Environment |

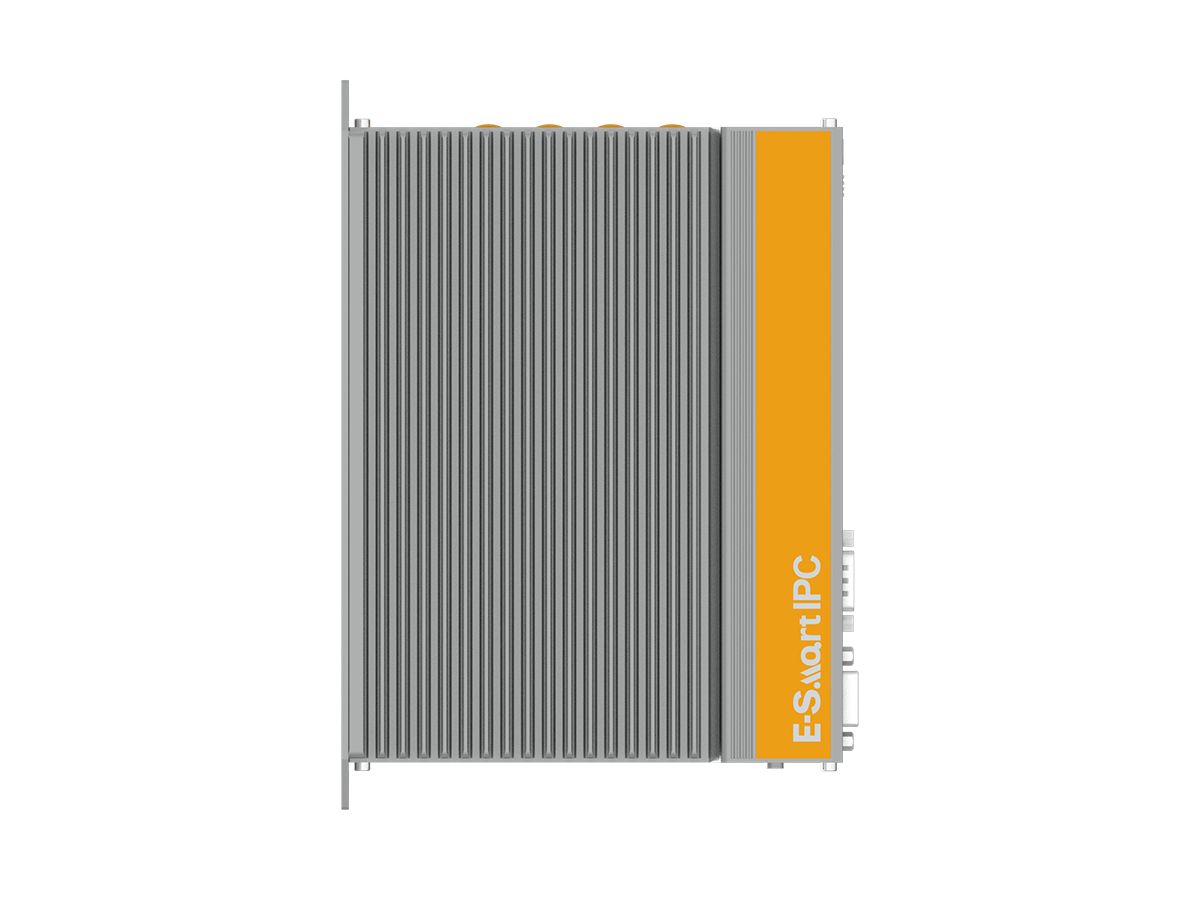

Heat Dissipation System | Passive Heat Dissipation | |||
| Operating Temperature | -20~60℃?(Industrial SSD) | ||||
| Storage Temperature | -40~80℃?(Industrial SSD) | ||||
| Relative Humidity | 5 to 90% RH (non-condensing) | ||||
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | ||||
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | ||||
-
